Your Trusted Buttweld Pipe Fittings Supplier in Malaysia

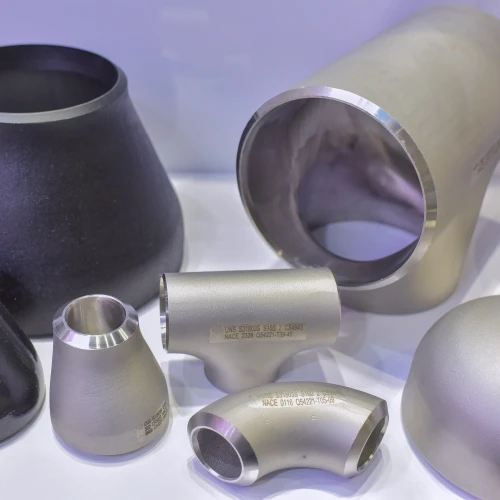

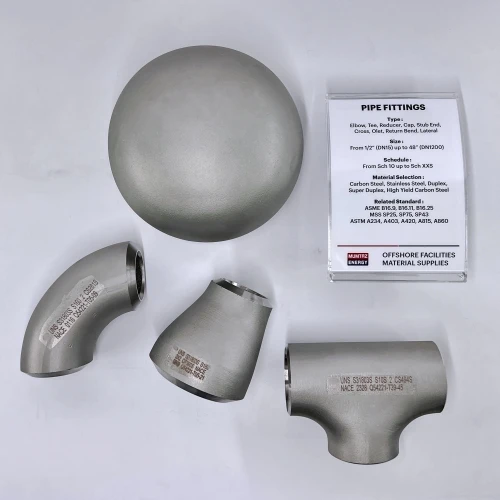

With over a decade of industry experience, Mumtaz Energy has established itself as a leading supplier of top quality buttweld pipe fittings. Our unwavering commitment to quality and customer satisfaction has earned us the trust of clients throughout the region. As one of the top buttweld pipe fittings suppliers in Malaysia, we offer a comprehensive range, including 45° elbows, 90° elbows, 180° elbows, equal tees, reducing tees, concentric reducers, eccentric reducers, caps, and lap joint stub ends—suitable for your oil and gas facilities.
At Mumtaz Energy, we are dedicated to delivering buttweld pipe fittings of the highest standards, meticulously tailored to meet the unique requirements of our valued customers.
Our buttweld fittings conform to strict international standards, ensuring superior quality and long-lasting performance. These include:
- ASME/ANSI B16.9: Factory-Made Wrought Steel Buttwelding Fittings
- ASME/ANSI B16.28: Wrought Steel Buttwelding Short Radius Elbows and Returns
- MSS SP-43: Wrought Stainless Steel Buttwelding Fittings
- MSS SP 95: Swaged Nipples and Bull Plugs
- MSS SP 75: High-Test Wrought Buttwelding Fittings
- ASME B16.25: Buttwelding Ends
- ASME B36 .10M: Welded and Seamless Wrought Steel Pipe
- NACE MR0175/ISO 15156
Understanding ASME/ANSI B16.9: Factory-Made Wrought Steel Buttwelding Fittings
What is a Butt Weld (Buttweld) Fitting?
A buttweld fitting is a weldable pipe fitting designed to facilitate changes in the direction of flow, branching off, reducing pipe size, or attaching auxiliary equipment. As leading buttweld fittings in Malaysia, Mumtaz Energy stock our stock according to ASME B16.9 standards.
Overview of ASME B16.9
The ASME B16.9 standard is a globally recognized specification for factory-made wrought steel buttwelding fittings. These fittings are crucial for connecting pipes of various diameters, thicknesses, and materials within complex piping systems. The standard ensures that all fittings, whether tees, elbows, reducers, caps, or crosses, adhere to precise dimensional, material, and testing requirements.
Manufacturing Process
Buttweld fittings are produced by cutting, bending, and shaping seamless or welded steel pipes to achieve the desired forms, such as elbows, tees, and reducers. This manufacturing process ensures that the fittings retain the integrity and strength required for demanding industrial applications.
Dimensions and Tolerances
ASME B16.9 covers fittings for nominal pipe sizes ranging from 1/2 inch to 48 inches. The standard specifies both dimensions and tolerances, ensuring that the fittings provide a secure, leak-free connection. Additionally, these fittings conform to ASME B36.10 for their dimensions and ASME B16.25 for their end preparations, ensuring consistency and quality across all products.
Why Choose ASME B16.9 Fittings?
Choosing fittings that comply with the ASME B16.9 standard guarantees that your piping system benefits from components that are reliable, durable, and tested to meet the highest industry standards. Whether you need elbows, tees, reducers, or other fittings, these components are designed to perform under the most demanding conditions, making them ideal for critical applications in industries such as oil and gas, petrochemical, and power generation.
As a leading supplier of ASME B16.9 Buttweld Pipe Fittings in Malaysia, Mumtaz Energy provides high-quality fittings that meet international standards, ensuring safety and performance for your projects. Reach out to us today to find the perfect fitting solution for your needs.
Buttwelding Pipe Fitting Specification
| Specification | Options |
|---|---|
| Buttwelding Pipe Fitting Type | Buttwelding 45° Elbow Buttwelding 90° Long Radius Elbow Buttwelding 90° Short Radius Elbow Buttwelding 180° Long Radius Elbow Buttwelding 180° Short Radius Elbow Buttwelding Equal Tee Buttwelding Reducing Tee Buttwelding Concentric Reducer Buttwelding Eccentric Reducer Buttwelding Cap Buttwelding Lap Joint Stub Ends |
| Size | NPS in Inch Fractions or in Metric Unit (mm): 1/2″ (15mm), 3/4″ (20mm), 1″ (25mm), 1-1/4″ (32mm), 1-1/2″ (40mm), 2″ (50mm), 2-1/2″ (65mm), 3″ (80mm), 3-1/2″ (90mm), 4″ (100mm), 5″ (125mm), 6″ (150mm), 8″ (200mm), 10″ (250mm), 12″ (300mm), 14″ (350mm), 16″ (400mm),18″ (450mm), 20″ (500mm), 22″ (550mm), 24″ (600mm), 26″ (650mm), 28″ (700mm), 30″ (750mm), 32″ (800mm), 34″ (850mm), 36″ (900mm), or48″ (1200mm) |
| Schedule/ Wall Thickness | Common: SCH 40, SCH 40s, SCH STD, SCH 80, SCH 80s, SCH XS, SCH 160, or SCH XXS Uncommon: SCH 10, SCH 10s, SCH 20, SCH 30, SCH 60, SCH 100, SCH 120, SCH 140 or specific WT in mm |
| Standard | ASME/ANSI B16.9: Factory-Made Wrought Steel Buttwelding Fittings ASME/ANSI B16.28: Wrought Steel Buttwelding Short Radius Elbows and Returns MSS SP-43: Wrought Stainless Steel Buttwelding Fittings MSS SP 95: Swaged Nipples and Bull Plugs MSS SP 75: High-Test Wrought Buttwelding Fittings ASME B16.25: Buttwelding Ends ASME B36 .10M: Welded and Seamless Wrought Steel Pipe NACE MR0175/ISO 15156 : Federal Standard in US or Petroleum and natural gas industries that materials applied in H2S-containing environments in oil and gas production. |
Material Grade Standard
| Application/Types | Standard/Grade/Symbol Selection |
|---|---|
| Carbon Steel and Alloy Steel for Moderate & High Temperature Service | ASTM A234/A234M : Piping Fittings of Wrought Carbon Steel and Alloy Steel for Moderate and High Temperature Service ASTM A234/A234M WPB, ASTM A234/A234M WPC, ASTM A234/A234M WP11 CL2, ASTM A234/A234M WP12 CL2, ASTM A234/A234M WP1, ASTM A234/A234M WP11 CL1, ASTM A234/A234M WP22 CL1, ASTM A234/A234M WP5 CL1, ASTM A234/A234M WP9 CL1. |
| Carbon Steel & Alloy Steel For Low-Temperature Service | ASTM A420/A420M : Piping Fittings of Wrought Carbon Steel and Alloy Steel for Low-Temperature Service ASTM A420/A420M WPL6, ASTM A420/A420M WPL9, ASTM A420/A420M WPL3, ASTM A420/A420M WPL8 ASTM A333/A333M : Seamless and Welded Steel Pipe for Low-Temperature Service ASTM A333/A333M Grade 1, ASTM A333/A333M Grade 3, ASTM A333/A333M Grade 4, ASTM A333/A333M Grade 6, ASTM A333/A333M Grade 7, ASTM A333/A333M Grade 8, ASTM A333/A333M Grade 9, ASTM A333/A333M Grade 10, ASTM A333/A333M Grade 11 |
| High Strength Low-Alloy Steel For High Temperature Service | ASTM A860/A860M : Wrought High-Strength Low-Alloy Steel Butt-Welding Fittings ASTM A860/A860M Grade WPHY 42, ASTM A860/A860M Grade WPHY 46, ASTM A860/A860M Grade WPHY 52, ASTM A860/A860M Grade WPHY 60, ASTM A860/A860M Grade WPHY 65, ASTM A860/A860M Grade WPHY 70 ASTM A335/A335M : Seamless Ferritic Alloy-Steel Pipe for High-Temperature Service ASTM A335/A335M Grade P1, ASTM A335/A335M Grade P2, ASTM A335/A335M Grade P9, ASTM A335/A335M Grade P11, ASTM A335/A335M Grade P12, ASTM A335/A335M Grade P22, ASTM A335/A335M Grade P23, ASTM A335/A335M Grade P24 |
| Austenitic Stainless Steels | ASTM A403/A403M : Wrought Austenitic Stainless Steel Piping Fittings ASTM A403/A403M WP304/WP304L, ASTM A403/A403M WP316 / WP316L, ASTM A403/A403M WP317/WP317L, ASTM A403/A403M WP321 / WP321H, ASTM A312/A312M : Seamless, Welded, and Heavily Cold Worked Austenitic Stainless Steel Pipes ASTM A312/A312M TP304/TP304L, ASTM A312/A312M TP316/TP316L/ TP316Ti ASTM A312/A312M TP317/TP317L, ASTM A312/A312M TP321/TP321H ASTM A312/A312M Alloy 20, ASTM A312/A312M 800 / 800H |
| Ferritic-Austenitic Stainless Steels | ASTM A815/A815M : Wrought Ferritic, Ferritic/Austenitic, and Martensitic Stainless Steel Piping Fittings ASTM A815/A815M WPS31803, ASTM A815/A815M WPS32101, ASTM A815/A815M WPS32202, ASTM A815/A815M WPS32750, ASTM A815/A815M WPS32950, ASTM A815/A815M WPS32760, ASTM A815/A815M WPS39274, ASTM A815/A815M WPS32550, ASTM A815/A815M WPS32205 ASTM A790/A790M : Seamless and Welded Ferritic/Austenitic Stainless Steel Pipe ASTM A790/A790M UNS S31803, ASTM A790/A790M UNS S32101, ASTM A790/A790M UNS S32202, ASTM A790/A790M UNS S32750, ASTM A790/A790M UNS S32760 |
As a leading supplier of ASME B16.9 Buttweld Pipe Fittings in Malaysia, Mumtaz Energy offers a variety of material grades to meet your piping standards, ensuring safety and performance. Contact us today to find the perfect fitting solution for your needs.
Ordering Information
When ordering buttweld pipe fittings, it’s essential to clearly specify the required details, including the Buttweld Fitting Type, Size, Schedule, Standard, and Material Grade.
Sample Description for Buttweld Pipe Fittings:
Equal Tee, 6″, Sch40S, Seamless Buttweld, ASME B16.9, NACE, ASTM A790/A790M UNS S31803 S
